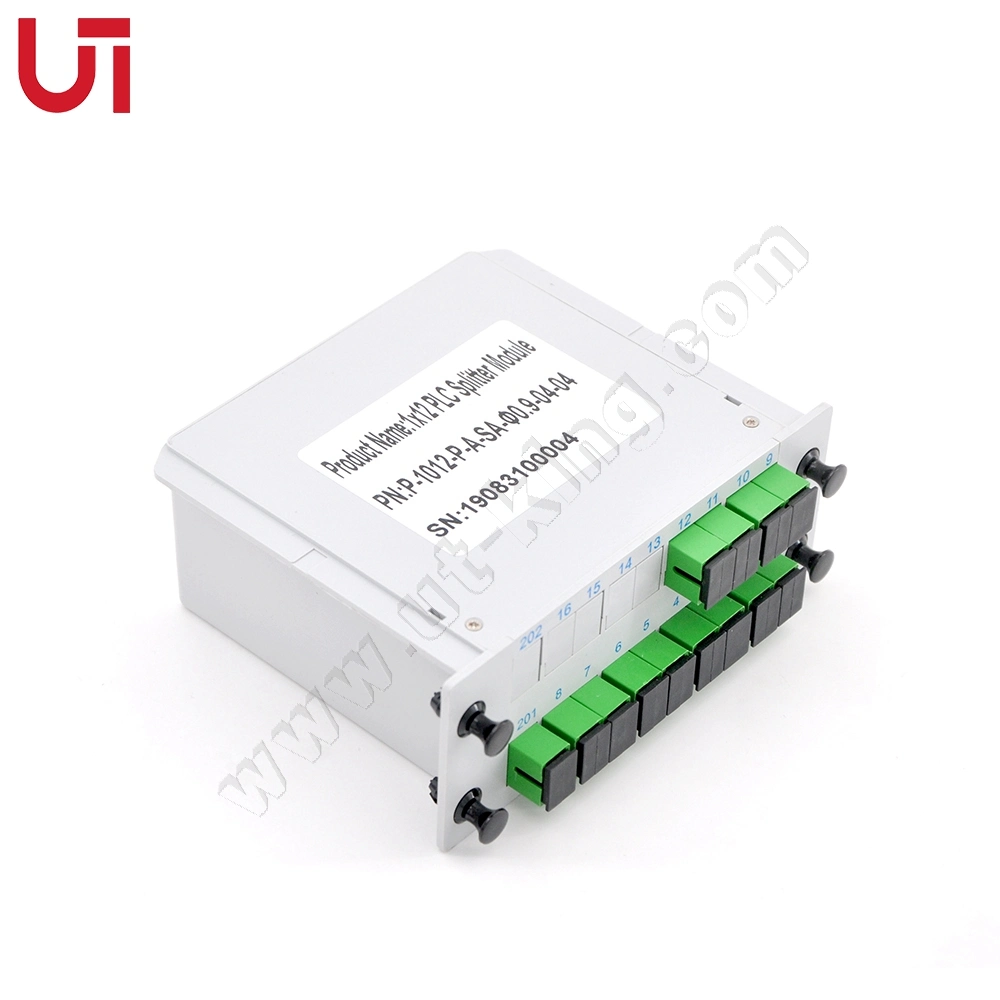

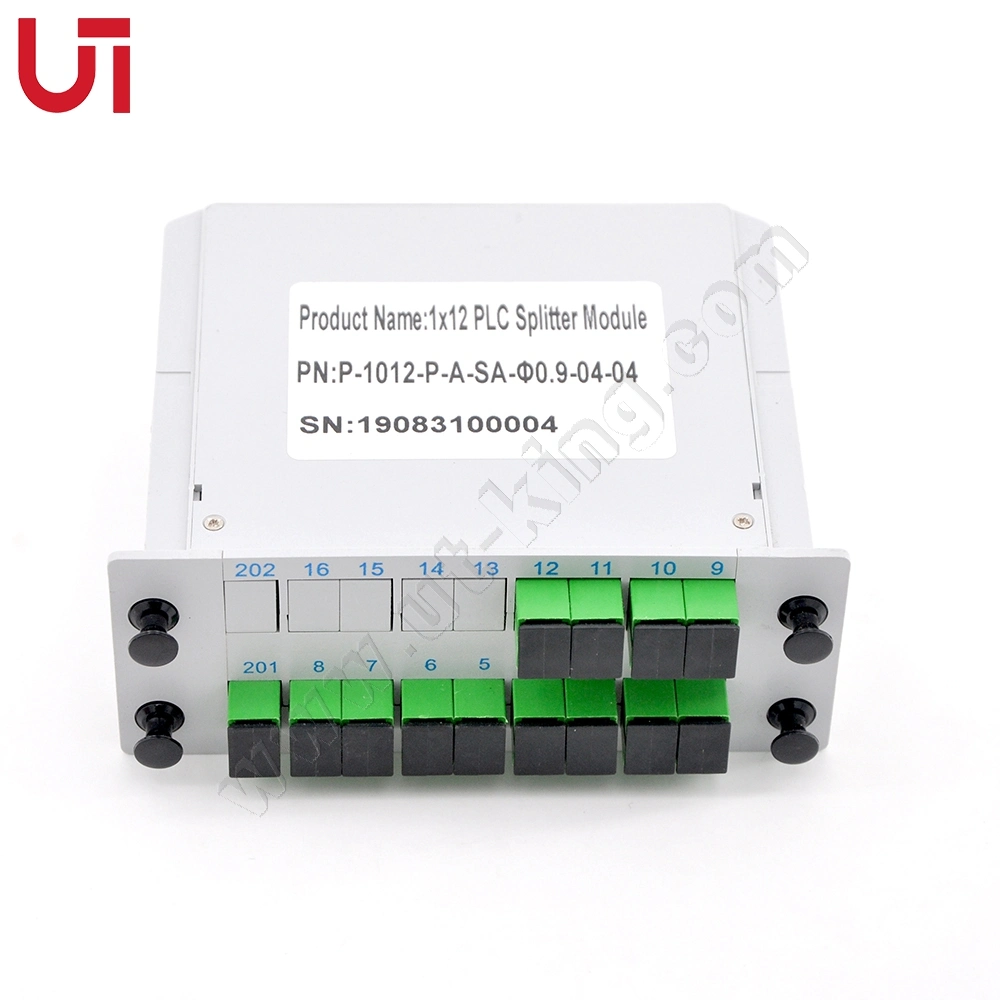

Fiber Optic FTTH PLC Splitter Box with Sc 1X2 1X4 1X8 1X16 Waveguide Type Optical Splitter
Product Features:
- Good uniformity and low insertion loss
- Low Polarization Dependent Loss
- Excellent Environmental Stability
- Excellent Mechanical
- Stability Telcordia GR-1221 and GR-1209
Application:
- Fiber to The Home (FTTH)
- Passive optical networks (PON)
- Local Area Networks (LAN)
- Cable Television (CATV)
- Test Equipment
Specification:
Parameter | Specification | ||||||||
Operating Wavelength (nm) | 1260 ~ 1650 | ||||||||
Type | 1x4 | 1x8 | 1x16 | 2x4 | 2x8 | 2x16 | 1x32 | 2x32 | 1x64 |
Insertion Loss (dB) Max. * | <7.3 | <10.4 | <13.5 | <7.6 | <11.2 | <14.5 | <16.2 | <18.2 | <20.5 |
Uniformity (dB) Max.* | <0.8 | <1.0 | <1.5 | <1.0 | <1.5 | <2.0 | <2.0 | <2.5 | <2.5 |
PDL(dB)Max.* | <0.2 | <0.2 | <0.3 | <0.3 | <0.3 | <0.4 | <0.3 | <0.4 | <0.3 |
Directivity (dB) Min * | 55 | ||||||||
Return Loss (dB) Min * | 55(50) | ||||||||
Operating Temperature (°C) | -5~ +75 | ||||||||
Storage Temperature (°C) | -40 ~ +85 | ||||||||
Fiber length | 1m or custom length | ||||||||
Fiber Type | Corning SMF-28e fiber | ||||||||
Connector Type | Custom specified | ||||||||
Power Handling (mW) | 300 | ||||||||
Remark:
1. Please contact us if you want to buy sample to test first.
2. The sample fee will be returned when you place the bulk order.
