Fiber Optic Manufacturers GYXTW Armoured 12 core Duct Type Optical Fiber Optic Cable

Description

The central tube is wraped by steel-plastic laminated tape, place two parallel steel wires on both sides and it is completed with an PE sheath.

Fiber Optic Manufacturers GYXTW Armoured 12 Core Duct Type Optical Fiber Optic Cable



Technical Characteristics

·Fiber count :2~24 , low loss, low dispersion.
·Proper design and precise excess length control offer excellent mechanical and environmental properties to cable.
·Steel wire armor enhances cable's side pressure and tensile resistance capability, corrugated steel tape armor ensures nice moisture proof.
·Applicable to interexchange communication, rural telephone, local junction, CATV, computer network transmission system, etc.
·Jacket can be made of LSZH material,(The model turns to GYXTZW in the case)


Typical count number Cable Property

Cable CountDiameter (mm)Cable Weight (kg/km)Tensile strengthCrush resistanceBending radius
Short termShort termLong termShort termShort termLong term
(N)(N/100mm)(mm)
4~128.1706001500300100010·D20·D
14~249.4946001500300100010·D20·D

1, All values above can be customized.
2,Notes: D=Cable diameter

Environmental Performance

·Transportation & Storage temperature: -40ºC-±70ºC
·Installation temperature: -30ºC-±60ºC
·Operation temperature : -40ºC-±70ºC
·Remarks : RoHS





Fiber Optic Manufacturers GYXTW Armoured 12 Core Duct Type Optical Fiber Optic Cable  Fiber Optic Manufacturers GYXTW Armoured 12 Core Duct Type Optical Fiber Optic Cable



Shipping & Packing


Fiber Optic Manufacturers GYXTW Armoured 12 Core Duct Type Optical Fiber Optic Cable

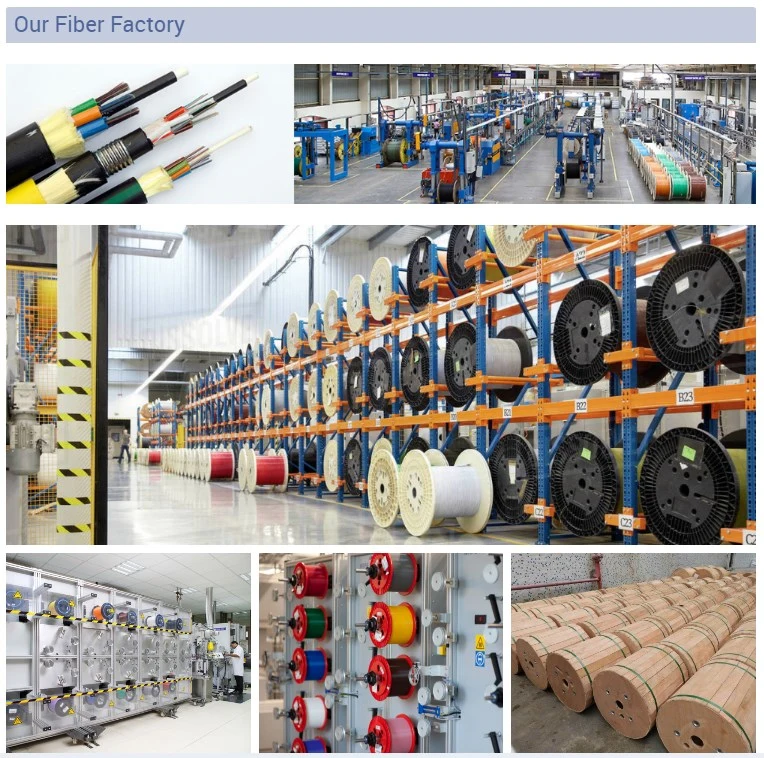

Company Information
