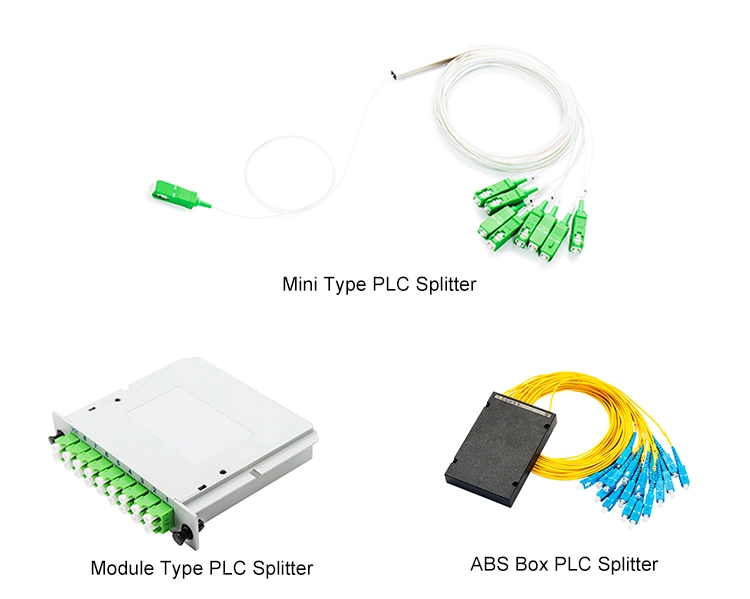

FTTH Sc Upc/APC 1X4 1X8 1X16 Fiber Optic PLC Splitter Box Module Optical PLC Splitter
Description
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is
fabricated using silica optical waveguide technology. It features small size, high reliability,
wide operating wavelength range and good channel-to-channel uniformity.YUDA provides
whole series of 1xN and 2xN splitter products that are tailored for specific applications.
Product Features:
Low Insertion loss
Low PDL
Excellent channel-to-channel uniformity
High return loss and Good repeatability
Wide wavelength range
Applications:
LAN, WAN and Metro Networks
FTTH project & FTTX Deployments
CATV System
GPON, EPON
Fiber Optic Test Equipment
Data-base Transmit Broadband Net
Compliance:
Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
YD-T2000.1-2009
RoHS
| Parameters | 1x2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
| Operating Wavelength (nm) | 1260~1650 | |||||
| Fiber Type | G657A or customer specified | |||||
| Insertion Loss (dB) | 3.8 | 7 | 10.2 | 13.5 | 16.8 | 20.5/21.0 |
| Loss Uniformity (dB) | 0.4 | 0.5 | 0.8 | 1 | 1.2 | 2 |
| Return Loss (dB) | 55 | 55 | 55 | 55 | 55 | 55/50 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.35 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
| Temperature Stability (- 50~ 85 ºC)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (ºC) | -50~85 | |||||
| Storage Temperature (ºC) | -50~85 | |||||
| Module Dimension (mm) (L×W×H) | 130×100×25 | 130×100×25 | 130×100×25 | 130×100×50 | 267×100×50 | 130x100x102 |
1. Are you a manufacturer or trade company?
A: We are a FTTH manufacturer. Start with Huawei switch machine of HUAWEI in 1994, YUDA have gone through nearly 20 years in the fiber optic communication area. Now our factory is not only in Ningbo, but also have a production center in Jilin, covering an area nearly 23000 Sqm, owning 1500 workers.
2.Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
3. What about the lead time?
A: Sample needs 1-2 days, mass production time needs 1-2 weeks
4. How about your price?
A: We are supplying products with very competitive price based on good performance.
5.Do you offer OEM Service ?
A: We accept OEM, ODM. The cable size and material are customized. Our own logo and own design are welcome. We will produce according to your requirment and description
6. Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our formal products.
