Fiber Optic SC FC LC APC UPC Patch Cord/Patchcord 1M 2M 5M 15M 30M Place of Origin:ChinaModel NumberSC FC LCFiber Mode:SM, MMBrand Name:YXFiberFiber TypeG652DFiber count:Simplex or DuplexInsertion Loss:≤0.3dBCable Diameter2.0mm/3.0mmMaterialLSZHConnector TypeSC FC LCProduct Description:Fiber Optic Patch Cord is a&nb

Featured Products

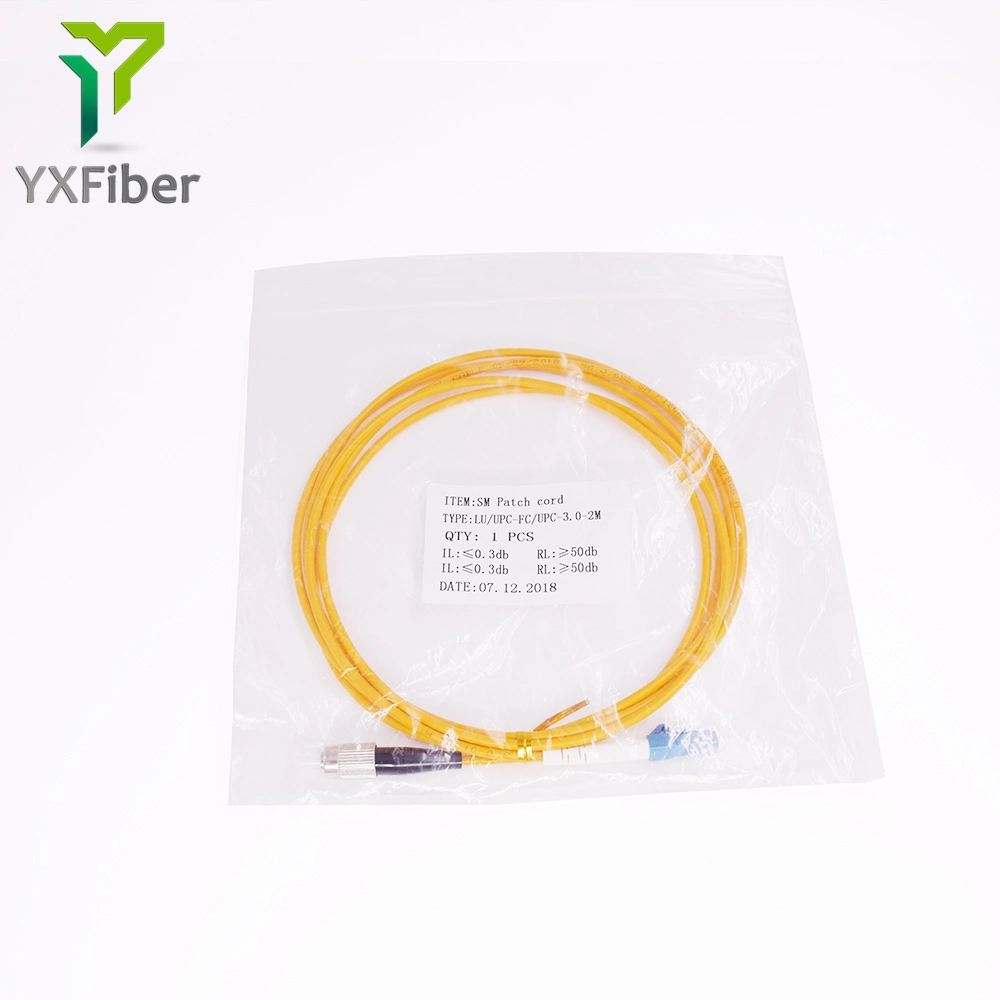

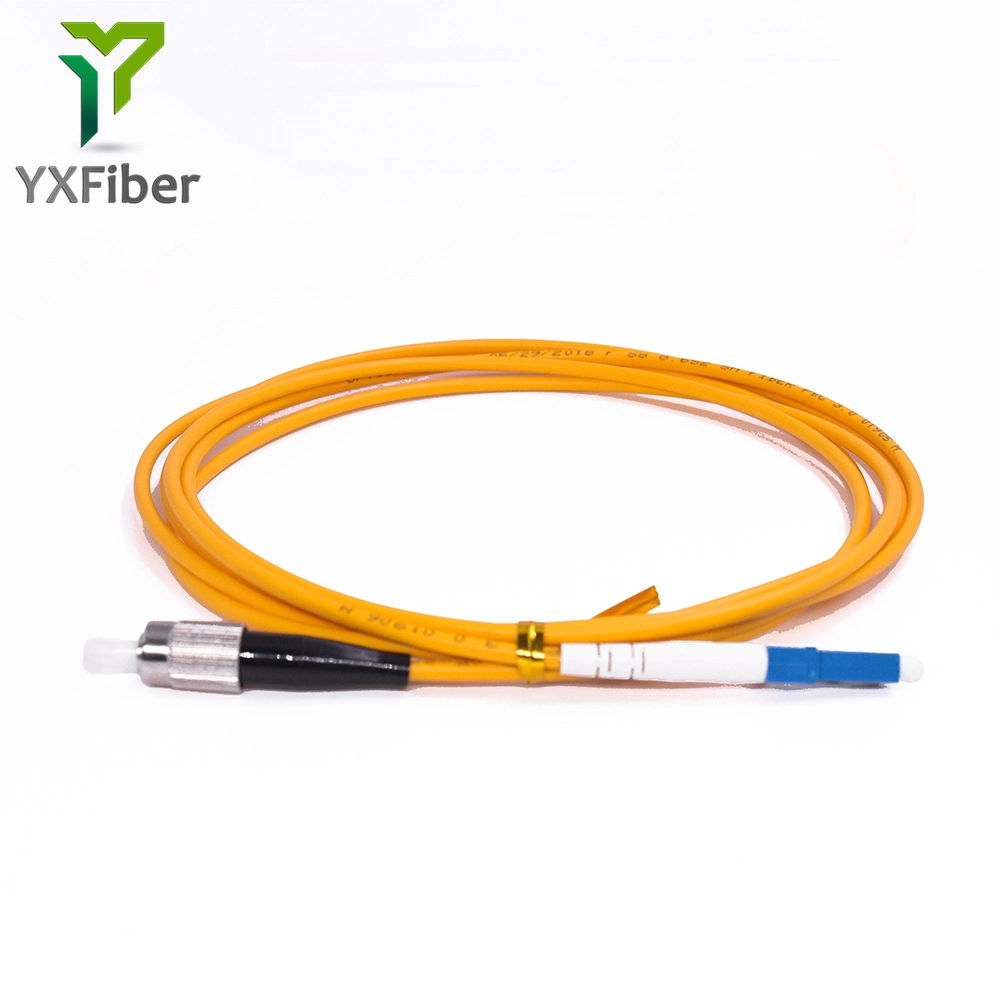

Fiber Optic SC FC LC APC UPC Patch Cord/Patchcord 1M 2M 5M 15M 30M

Place of Origin:ChinaModel NumberSC FC LC
Fiber Mode:SM, MMBrand Name:YXFiber
Fiber TypeG652DFiber count:Simplex or Duplex
Insertion Loss:≤0.3dBCable Diameter2.0mm/3.0mm
MaterialLSZHConnector TypeSC FC LC

Product Description:
Fiber Optic Patch Cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch or other telecommunication equipment. Its thick layer of protection is used to connect the optical transmitter, receiver, and the terminal box. This is known as "interconnect-style cabling".
ItemUnitSpecification
SMMM
SC/PC       SC/UPC                SC/APCSC/PC
Insertion LossdB≤0.20
Max. Insertion LossdB≤0.30
RepeatabilitydB≤0.10
ChangeabilitydB≤0.20
Return LossdB45                 50                          60/
Operation TemperatureºC-25 ~ +70
Storage TemperatureºC-40 ~ +85
Fiber typeum9/12550/125;         62.5/125
Core number/single or dual fiber
Durabilitytimes≥1000
Industry Standard/Bellcore TA-NWT-001209

Feature:
  1. Open bulkhead for easy access to SFP
  2. Positive feedback to operator when fully mated
  3. One-hand mating
  4. Duplex LC interface ulkhead cutouts allow for removal of transceiver through the bulkhead
  5.  (no need to open RRH for transceiver replacement)
  6. Robust bayonet locking for easy, fast, and secure mating
  7. Multimode and singlemode
  8. Water proof, dust proof and corrosion resistant
  9. Expansion to RJ45, etc
  10. Plug has tolerance free design, fully free floating in Z-axis
  11. No Cable buckling at any time during or after installation
  12. Cost effective glass-filled polymer or metal die casted bulkhead
  13. Field installable version available
