High Quality ABS Cassette Splitter PLC 1X4 Fiber Optic PLC Splitter with Sc/Upc Connector

High quality  ABS Box Type Splitter PLC 1x4 Fiber Optic PLC SplitterPLC splitter(Planar Lightwave Circuit) is a type of optical power management device that is fabricated using silica optical wave guide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformi

Featured Products

High quality  ABS Box Type Splitter PLC 1x4 Fiber Optic PLC Splitter

PLC splitter(Planar Lightwave Circuit) is a type of optical power management device that is fabricated using silica optical wave guide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. We provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.High Quality ABS Box Type Splitter PLC 1X4 Fiber Optic PLC Splitter with Sc/Upc Connector



Features

Low Insertion loss and Low PDL

Uniform power splitting

High reliability

Excellent environmental stability

Compact size and various package



Applications

FTTx Systems

Digital, hybrid and AM-Video systems

LAN,WAN and Metro Networks

CATV systems

Other applictaions in fiber optic systems

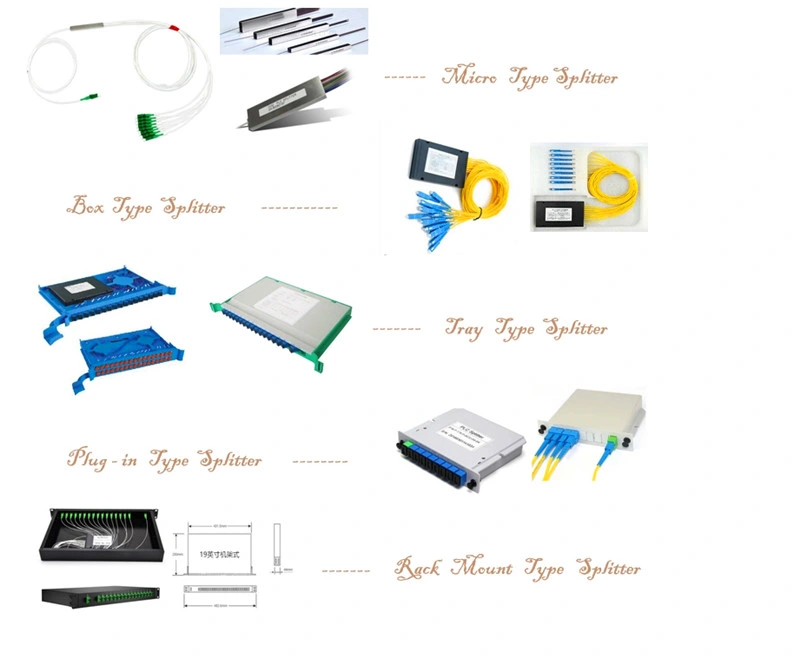

Types


Bare Fiber type PLC splitter

Steel Tube type PLC splitter

ABS Box Type PLC Splitter

Cassette type PLC splitter Module

Rack type PLC splitter Module

Tray assembly PLC splitter Module


Specification


Parameters

1×2

1×4

1×8

1×16

1×32

1×64

Operating Wavelength (nm)

 1260~1650

Fiber Type

SMF-28e or customer specified

Insertion Loss (dB)(S/P Grade)

 4.0/3.8

 7.3/7.0

 10.5/10.2

13.7/13.5

16.9/16.5

21.0/20.5

Loss Uniformity (dB)

0.4

0.6

0.8

1.2

1.5

2.5

Return Loss (dB) (S/P Grade)

50/55

50/55

50/55

50/55

50/55

50/55

Polarization Dependent Loss(dB)

0.2

0.2

0.3

0.3

0.3

0.4

Directivity (dB)

55

55

55

55

55

55

Wavelength Dependent Loss(dB)

0.3

0.3

0.3

0.5

0.5

0.5

Temperature Stability(-40~85 ºC)(dB)

0.5

0.5

0.5

0.5

0.5

0.5

Operating Temperature (ºC)

-40~85

Storage Temperature (ºC)

-40~85

Packaging Dimension (mm)   (L×W×H)

40×4×4

40×4×4

40×4×4

40×4×4

50×7×4

60×12×4

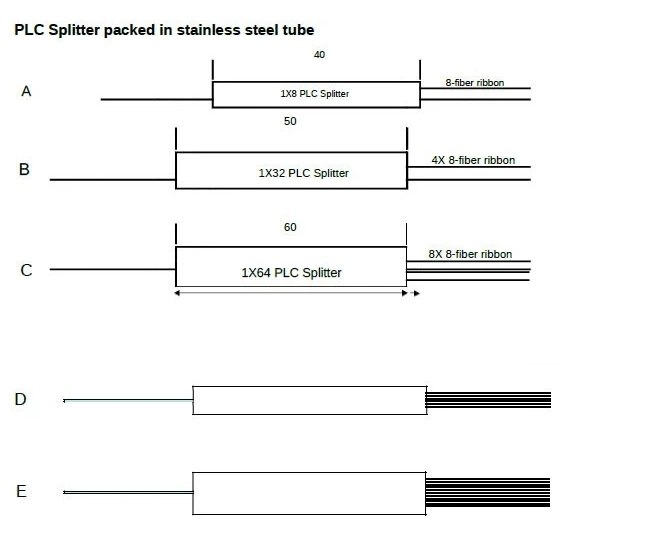

DrawingHigh Quality ABS Box Type Splitter PLC 1X4 Fiber Optic PLC Splitter with Sc/Upc Connector




High Quality ABS Box Type Splitter PLC 1X4 Fiber Optic PLC Splitter with Sc/Upc Connector



High Quality ABS Box Type Splitter PLC 1X4 Fiber Optic PLC Splitter with Sc/Upc Connector



Packaging & Shippig


High Quality ABS Box Type Splitter PLC 1X4 Fiber Optic PLC Splitter with Sc/Upc Connector


High Quality ABS Box Type Splitter PLC 1X4 Fiber Optic PLC Splitter with Sc/Upc Connector
High Quality ABS Box Type Splitter PLC 1X4 Fiber Optic PLC Splitter with Sc/Upc Connector


About Us

High Quality ABS Box Type Splitter PLC 1X4 Fiber Optic PLC Splitter with Sc/Upc Connector

High Quality ABS Box Type Splitter PLC 1X4 Fiber Optic PLC Splitter with Sc/Upc Connector
High Quality ABS Box Type Splitter PLC 1X4 Fiber Optic PLC Splitter with Sc/Upc Connector

High Quality ABS Box Type Splitter PLC 1X4 Fiber Optic PLC Splitter with Sc/Upc Connector

FAQ

1.Why choose  wolonfiber ?

(1)Professional manufacturer: Low MOQ, free samples are available.

(2)Quality assurance:Stable high quality.

(3)Customers solutions:Quick.

(4)Win-Win Price:Save much costs, bring more benefits for customers.

2.Do you accept OEM,ODM?

Yes, we accept them .

3.Can you print our LOGO?

Sure, Your LOGO can be printed on the boxes , or products.

4.What's the method of shipment?

We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.

5.What's the Payment?

We accept all payments , such as LC,TT,DP,DA,Paypal,Western Union,Money Gram.
