plc splitter terminal box Hot selling fiber optic equipment 16 way fiber optic plc splitter fiber optic splitter 1X4 1x16 sc upc apc fiber optic plc splitter
Product description

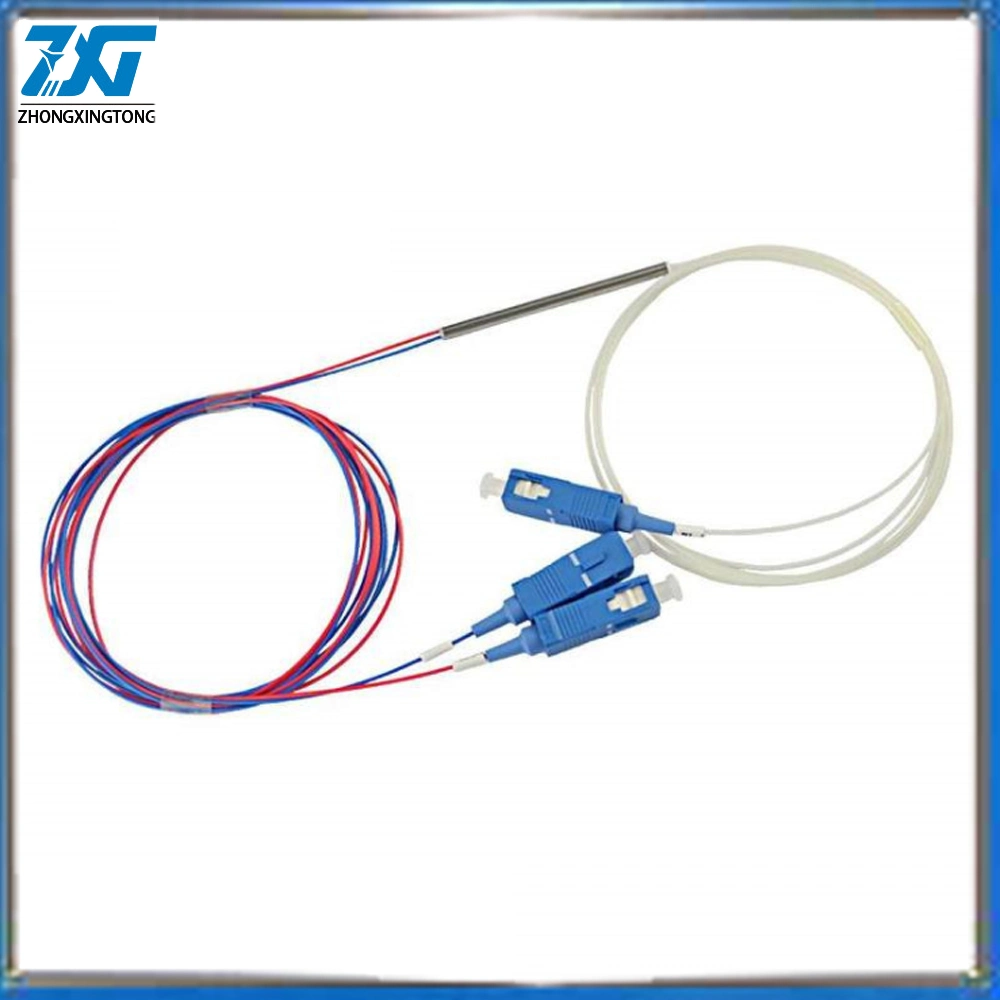

Planar waveguide light optical distributor (PLC Splitter), is a kind of planar waveguide integrated optical device, it can be 1260nm ~ 1650nm such a wide range of wavelengths of light power reservation in realization, the distribution of wavelength range covers EPON technology used1310nm, 1490nm and 1550nm three wavelengths. Especially suitable for EPON Ethernet passive optical network access technology FTTP fiber network system, broadband passive optical distributor (POS) use.
Features
1.Low Insertion loss and Low PDL
2.Uniform power splitting
3.High reliability
4.Excellent environmental stability
5.Compact size and various package
Applications
1.FTTx Systems
2.Digital, hybrid and AM-Video systems
3.LAN,WAN and Metro Networks
4.CATV systems
5.Other applications in fiber optic systems
Product description
Planar waveguide light optical distributor (PLC Splitter), is a kind of planar waveguide integrated optical device, it can be 1260nm ~ 1650nm such a wide range of wavelengths of light power reservation in realization, the distribution of wavelength range covers EPON technology used1310nm, 1490nm and 1550nm three wavelengths. Especially suitable for EPON Ethernet passive optical network access technology FTTP fiber network system, broadband passive optical distributor (POS) use.
Features
1.Low Insertion loss and Low PDL
2.Uniform power splitting
3.High reliability
4.Excellent environmental stability
5.Compact size and various package
Applications
1.FTTx Systems
2.Digital, hybrid and AM-Video systems
3.LAN,WAN and Metro Networks
4.CATV systems
5.Other applications in fiber optic systems
Specification:
| Parameter | Specification | ||||||||
| Operating Wavelength (nm) | 1260 ~ 1650 | ||||||||
| Type | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x4 | 2x8 | 2x16 |
| Insertion Loss (dB) Max. | ≤4.2 | ≤7.5 | ≤10.6 | ≤13.7 | ≤17.2 | ≤21 | ≤7.8 | ≤10.8 | ≤13.9 |
| Uniformity (dB) Max | ≤0.6 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.5 | ≤1.0 | ≤1.5 | ≤2.0 |
| PDL(dB)Max | <0.2 | <0.2 | <0.2 | <0.3 | <0.3 | <0.4 | <0.3 | <0.3 | <0.4 |
| Directivity (dB) Min | 55 | ||||||||
| Return Loss (dB) Min | 55(50) | ||||||||
| Operating Temperature (°C) | -45~ +85 | ||||||||
| Storage Temperature (°C) | -5~ +75 | ||||||||
| Fiber length | 1m or custom length | ||||||||
| Fiber Type | Corning G656A1 or Fiberhome G657A1 | ||||||||
| Connector Type | Custom specified | ||||||||
Power Handling (mW) | 300 | ||||||||
