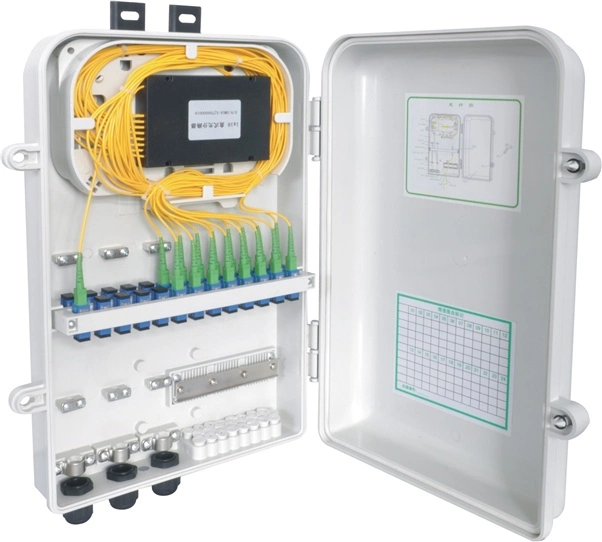

ABS Box FTTH 1 to 16 Sc Upc PLC Gpon Splitter Module
PLC-Planar Lightwave Circuit Splitter(PLC splitter) is a kind of power splitter based on the integrated quartz baseplate.Single Mode PLC 1*N and 2*N Splitter devide uniformly optical signals from one or two inputs to multiple outputs,and Splitter can be opetated in reverse direction to combine multiple signals into one fiber or two fibers.
PLC Gpon splitter Features
1.Broadband Operation Wavelength
2.Low insertion loss
3.Low PDL
4.Compact Design
5.Good channel-to-channel uniformity
6.High Reliability and Stability
7.RoHS Compliance
PLC splitter Application
1.Telecommunication sector
2.FTTH
3.CATV
4.Video Transimission
PLC splitter Spec
PLC splitter Package and shipping
About package: Carton case and common exporting packages
About Shipping: A. Shipping time is depends on quantity and factory schedule
B. About Shipping ways:By air,sea and courier(DHL,Fedex,Ups,TnT or EMS)
About Payment:Usually paypal for sample,T/T,Western Union is available
Any question about this 1 to 16 Gpon PLC splitter,pls leave me an inquiry or contact me directly.
PLC-Planar Lightwave Circuit Splitter(PLC splitter) is a kind of power splitter based on the integrated quartz baseplate.Single Mode PLC 1*N and 2*N Splitter devide uniformly optical signals from one or two inputs to multiple outputs,and Splitter can be opetated in reverse direction to combine multiple signals into one fiber or two fibers.
PLC Gpon splitter Features
1.Broadband Operation Wavelength
2.Low insertion loss
3.Low PDL
4.Compact Design
5.Good channel-to-channel uniformity
6.High Reliability and Stability
7.RoHS Compliance
PLC splitter Application
1.Telecommunication sector
2.FTTH
3.CATV
4.Video Transimission
PLC splitter Spec
Operating Wavelength | 1260~1650 | |||||
| 1*N PLC Splitter | 1*4 | 1*8 | 1*16 | 1*32 | 1*64 | |
| Insertion Loss(dB) | MAX(P/S) | 7.0/7.4 | 10.5/11.0 | 13.5/13.9 | 16.5/17.2 | 21/21.5 |
| Uniformity(dB) | MAX | 0.8 | 1.0 | 1.4 | 1.6 | 2.0 |
| Return Loss(dB) | MIN | 55 | ||||
| PDL(dB) | MAX | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 |
| 2*N Splitter | 2*4 | 2*8 | 2*16 | 2*32 | --- | |
| Insertion Loss(dB) | MAX | 7.6 | 11.0 | 14.8 | 17.9 | --- |
| Uniformity(dB ) | MAX | 1.0 | 1.2 | 1.5 | 1.8 | --- |
| Return Loss(dB) | MIN | 55 | ||||
| PDL(dB) | MAX | 0.3 | 0.3 | 0.3 | 0.3 | --- |
| Fiber Type | ITU G652A,G652B,G652C,G652D;G657A1/A2/B1/B2 | |||||
| Temperature Stalibility(dB) | MAX | 0.5 | ||||
| Operation Temperature(ºC) | -40~85 | |||||
| Storage Temperature(ºC) | -40~85 | |||||
PLC splitter Package and shipping
About package: Carton case and common exporting packages
About Shipping: A. Shipping time is depends on quantity and factory schedule
B. About Shipping ways:By air,sea and courier(DHL,Fedex,Ups,TnT or EMS)
About Payment:Usually paypal for sample,T/T,Western Union is available
Any question about this 1 to 16 Gpon PLC splitter,pls leave me an inquiry or contact me directly.
